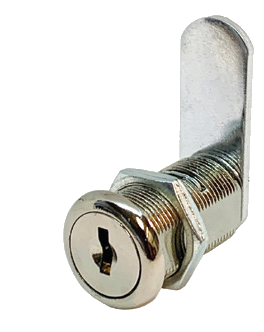

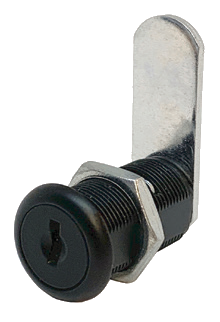

Disc Tumbler Cam Locks
Ships with body and cylinder assembled for fast, easy installation. Available in seven cylinder lengths to fit material thicknesses from 7/64" up to 1-13/16", with one straight and one offset cam included standard.
| Item | Finish | Cylinder Length | Max. Material Thickness | Inner Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 951 | 14A, US19 | 7/16" | 7/64" | 15/box | 120/case |
| 952 | 14A, US19 | 5/8" | 15/64" | 15/box | 120/case |
| 954 | 14A, US19 | 15/16" | 5/8" | 15/box | 120/case |
| 953 | 14A, US19 | 1-3/16" | 7/8" | 15/box | 120/case |
| 955 | 14A, US19 | 1-7/16" | 1-1/8" | 15/box | 120/case |
| 960 | 14A, US19 | 1-3/4" | 1-7/16" | 15/box | 120/case |
| 961 | 14A, US19 | 2" | 1-13/16" | 15/box | 120/case |
Keying
Keyway: Cascade Series (equivalent to National 5-disc system). Includes 2 keys per lock. Keys together with CompX/National C8053-style disc tumbler locks.
- Stock KD: 120 codes · Stock MKKD: 120 codes
- Stock KA#: C346A, C390A, C413A, C415A, C420A, C452A
- Custom keying (MKKA / MKKA+MKKD to schedule), up to 380 MKKD codes
Included Accessories
- 2 change keys per lock
- P95-CM-1 – 1-1/2" straight cam
- P95-CM-2 – 1-1/8" offset cam (11/32" offset)
- P95-SPW eyelet spur washer, P95-FN-Z fixing nut
- P95-TR trim ring, P95-CS cam screw, P95-RS retainer staple
Optional Accessories
- Straight cams: P95-CM-3 (3"), P95-CM-6 (1"), P95-CM-7 (5/8")
- Offset cam: P95-CM-4 (1-5/8" x 5/16")
- Hook cam: P95-CM-5 (1-1/2")
- Keyblanks KB-D83 / KB-D85 · D1 Keying Kit
Disc Tumbler Deadbolt Locks
Drawer (973, 975) and door (974) deadbolt locks with a zinc die cast body and 5-disc tumbler cylinder. The cylinder can be removed with a control key for fast in-field rekeying, without removing the whole lock.
| Item | Application | Finish | Barrel Length | Inner Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 973 | Drawer | 14A, US19 | 15/16" | 15/box | 120/case |
| 975 | Drawer | 14A, US19 | 1-3/16" | 15/box | 120/case |
| 974 | Door | 14A, US19 | 15/16" | 15/box | 120/case |
Keying
Keyway: Cascade Series (equivalent to National 5-disc system). Includes 2 keys per lock. Keys together with CompX/National-style disc tumbler locks.
- Stock KD: 120 codes · Stock MKKD: 120 codes
- Stock KA#: C346A, C390A, C413A, C415A, C420A, C452A
- Custom keying (MKKA / MKKA+MKKD to schedule), up to 380 MKKD codes
Included / Optional
- Included: 2 change keys per lock
- Optional: KB-DC97-NP control key (sold separately)
- Optional: KB-D83 / KB-D85 keyblanks
- Optional: D1 Keying Kit (KA/KD/MK)
Construction
- Body: zinc die cast
- Cylinder: zinc die cast, 5 disc tumbler
- Standard function: key removable in locked or unlocked position
- Finish: 14A bright nickel or US19 matte black
Disc Tumbler Deadbolt Locks
Zinc die cast deadbolt locks with a 5-disc tumbler cylinder, built to match the keying of CCL 02066 and 02067 disc tumbler locks — a straightforward retrofit for existing CCL-keyed installations.
| Item | Finish | Barrel Length | Inner Box Qty. | Case Qty. |
|---|---|---|---|---|
| 266A | 26D | 15/16" | 15/box | 120/case |
| 266B | 26D | 1-1/8" | 15/box | 120/case |
| 267A | 26D | 15/16" | 15/box | 120/case |
Keying
Keyway: CCL Disc Tumbler. Includes 2 keys per lock. Matches keying of CCL 02066 and 02067 disc tumbler locks.
- Stock KD: 120 codes
- Stock KA#: AUE1, AUE8, AUE48, CAT30, CAT60
Keyblanks
- KB-C5D-NP – CCL 5 disc keyblank
- KB-C6D-NP – CCL 6 disc keyblank
- Cut keys available for all stock KA codes
Construction
- Body: zinc die cast
- Cylinder: zinc die cast, 5 disc tumbler
- Standard function: key removable in locked or unlocked position
- Finish: 26D
